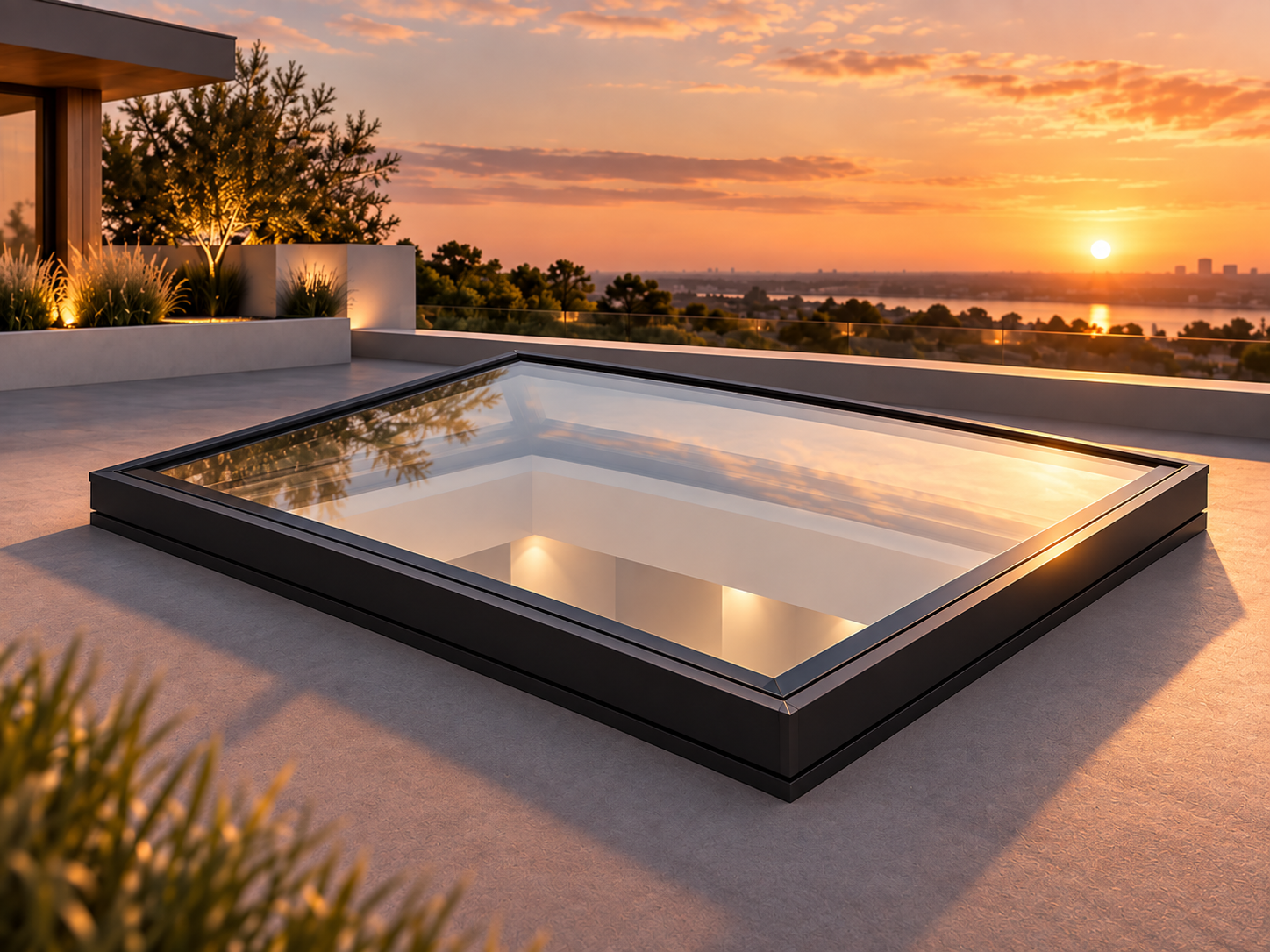

Atlas Stock Flat Rooflights

Measure to the outside of the finished kerb. The dimensions selected in the configurator are the external kerb sizes.

The rooflight is installed on an 80mm-wide kerb, so the clear internal opening is 160mm smaller overall in each direction.

If one side of the rooflight is pitched, the external pitched-side dimension is measured along the slope.

The kerb must be a minimum of 150mm above the roof deck and the rooflight requires a minimum 5° pitch. Plasterboard finishes to the inside face of the kerb.

See image 2 in the product gallery for the Lumina measuring guide.

Standard Clear 6mm clear toughened / 16mm argon gas / 6mm low-e toughened.

Solar Control – Neutral 6mm easy-clean solar Neutral Activ toughened / 16mm argon gas / 6mm low-e toughened.

Solar Control – Blue 6mm easy-clean solar Blue Activ toughened / 16mm argon gas / 6mm low-e toughened.

Neutral and Blue solar-control glass are priced the same for each valid size.

Choose from five standard colour combinations:

White Gloss Anthracite Grey RAL 7016 Matt Black RAL 9005 Matt Anthracite Grey RAL 7016 Matt / White Internal Black RAL 9005 Matt / White Internal

Delivery is included in the website price.

The current Atlas matrix includes weekly delivery on an Atlas lorry run; additional charges may apply in certain locations. Lead time can vary by size, glazing specification and current production schedule, so please contact Lumina Design if your project is time-sensitive.

The rooflight must be installed on a raised, weathered kerb at least 150mm above the roof deck, with a minimum 5° pitch. The kerb and roof weatherproofing are by others.

The configurator covers the valid size combinations in the current Atlas flat-rooflight matrix.

If the size you need is not shown, or your project requires an unusual layout or specification, contact Lumina Design and we can check the available options with Atlas.

Call 01656 630037 or email sales@luminadesign.co.uk.
